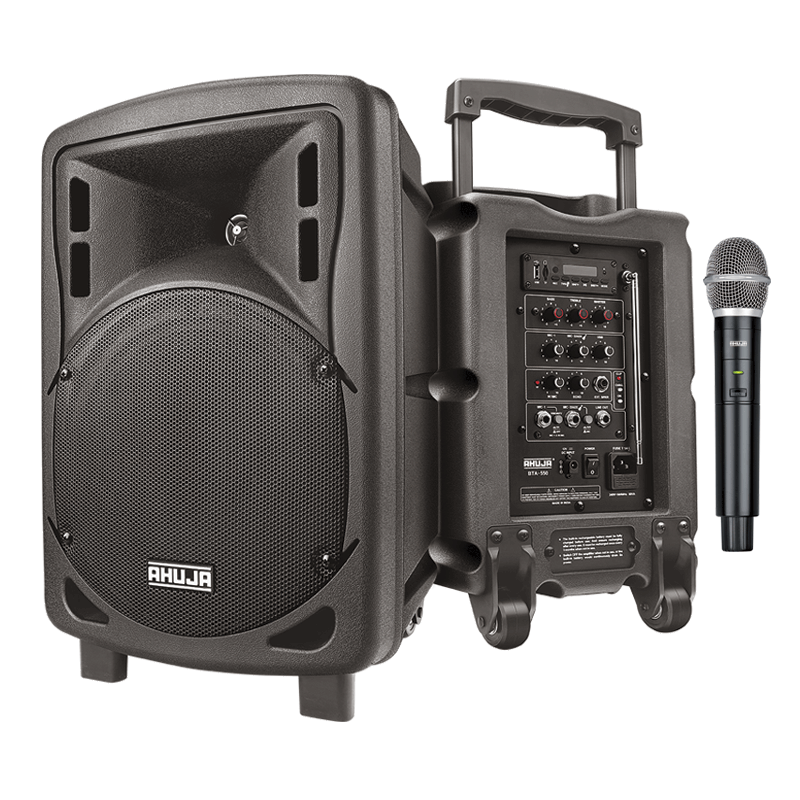

BTA-550
PA Amplifier Sets
- Elegant and compact Portable PA Amplifier in plastic moulded cabinet with trolley system.
- Two Mic inputs, one Wireless Mic & one Aux (Guitar) input.
- Built-in 20.32 cm (8”) 30W Full Range Dual Cone speaker & a tweeter.
- Mic-1 and Wireless Mic have selectable priority over all other inputs.
- Built-in MP3 Player with Bluetooth, Recorder and remote control.
- Built-in Digital Echo.
- Active Bass & Treble controls.
- LED indications for low battery, charging & clip output.
- Facility of auto cut-off to prevent battery from deep discharge.
- Three power source operation (AC mains, External 12V DC or built-in 11.1V 2200mAh rechargeable Li-ion battery).
AMPLIFIER | . |
Audio Output | 30W Max. |
Input Channels | 2 x Mic 4mV/4.7kW, 1 x Aux 100mV/47kW, 1 x Wireless MIC |
Line Output | 775mV |
Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
Digital Player | MP3 player with USB, MMC/TF card reader, Recording function and Bluetooth |
Power Requirements | AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 11.1V 2200mAh Rechargeable Li-ion battery (built-in) |
Power Consumption | 50VA |
Protection | AC Fuse: 1 Amp. 250V (T 1A L) |
Wireless Receiving Mode | Quartz Controlled Fixed Frequency |
Wireless Range | Over 20m in Free Space (Line of Sight) |
Dimension | W550 x H330 x D210 mm |
Weight | 5.60kg |
TRANSMITTER | . |
RF Output Power | 15mW (Max.) |
Frequency Response | 50-15,000Hz |
Battery | 3V (2 × 1.5V AA Pencil Cells) |
Dimension | Ø55 (L 248) mm |
Weight | 180g (without battery) |
