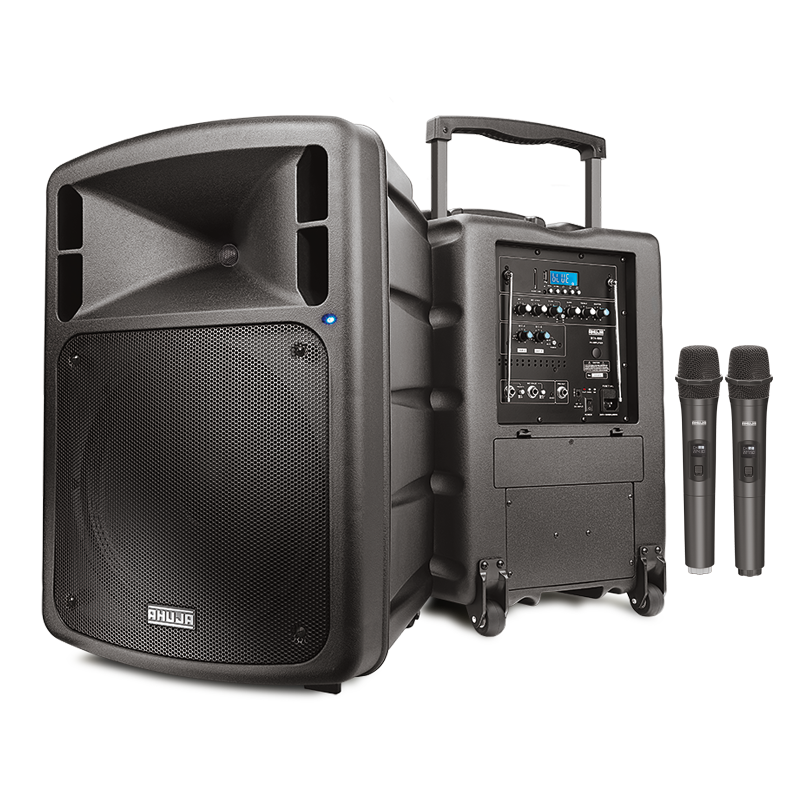

BTA-880
PA Amplifier Set
- Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System.
- Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs.
- Built-in 30.4 cm (12”) 4Ω speaker & 8Ω HF driver.
- Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
- Tone control for setting the desire tonal quality.
- LED indications for low battery, charging & clip output. Auto cut-off feature prevents deep discharge of rechargeable battery.
- Operates on AC mains, external 12V DC or built-in 12V 7Ah rechargeable battery.
AMPLIFIER | . |
Speaker | 1×12″ Speaker, 1xHF Driver |
Power Output (BI-Amp) | 50W Max. (LF+HF) LF: 35W Max HF: 15W Max |
Input Channels | 2 x Mic 3mV/4.7kΩ, 1 x Aux 100mV/47kΩ, Music 100mV/47kΩ, 2 x Wireless MIC |
Frequency Response | 55-18,000Hz ±3dB (Bi-Amp) |
S/N Ratio | 60dB |
Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
Digital Player | MP3 player with USB, SD, MMC card reader, Recording function and Bluetooth |
Preamp Output | 200mV/600Ω |
Protections | AC Fuse: 1 Amp. 250V (T 1A L) |
Power Supply | AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 12V 7Ah Rechargeable battery (built-in) |
AC Power Consumption | 60VA |
Dimensions | W405 x H610 x D350 mm |
Weight | 18.80 kg |
TRANSMITTER | . |
Wireless Microphone | 2 x Hand Held |
Frequency Stability | ±0.005% |
Max. Modulation | 45dB |
RF Output | 10mW |
Frequency Response | 50-15,000Hz |
Battery | 3V (2 × 1.5V AA Pencil Cells) |
Current Consumption | < 200mA |
Dimensions | Ø52 × L242 mm |
Weight (w/o battery) | 140g |
